Description |

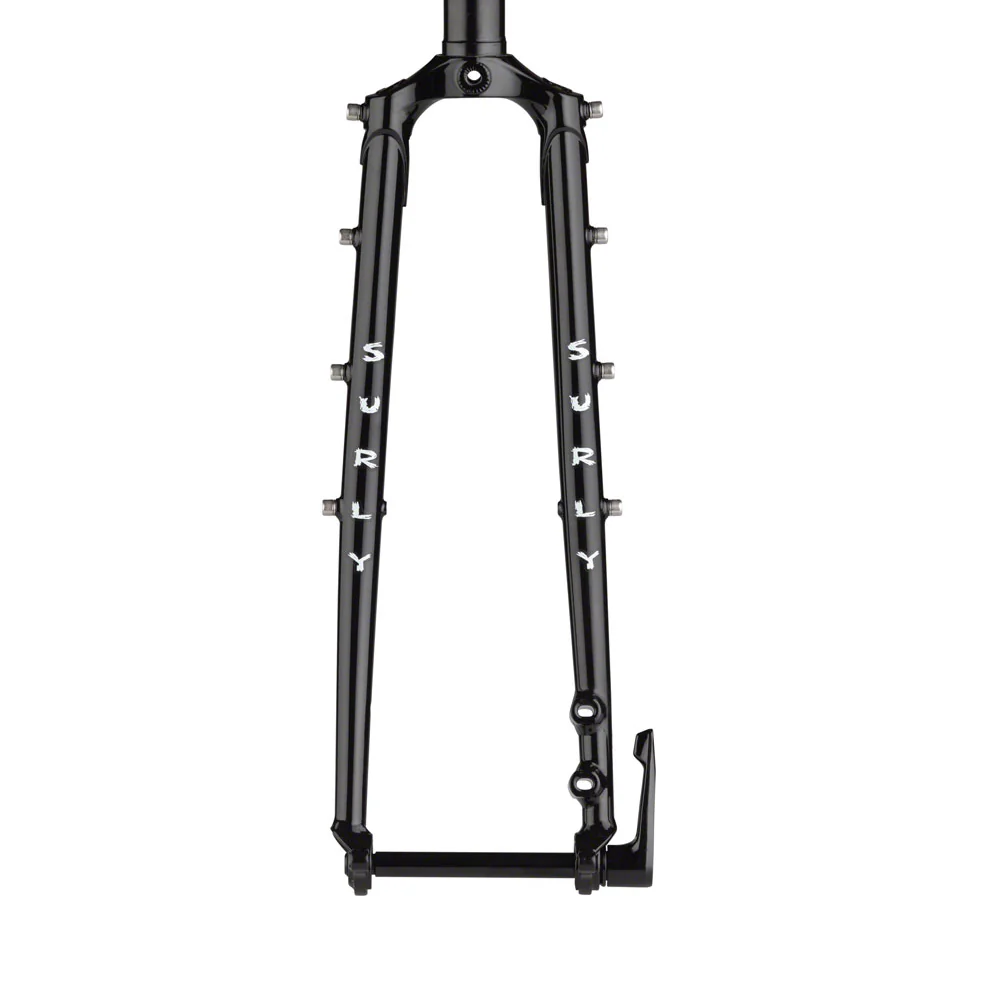

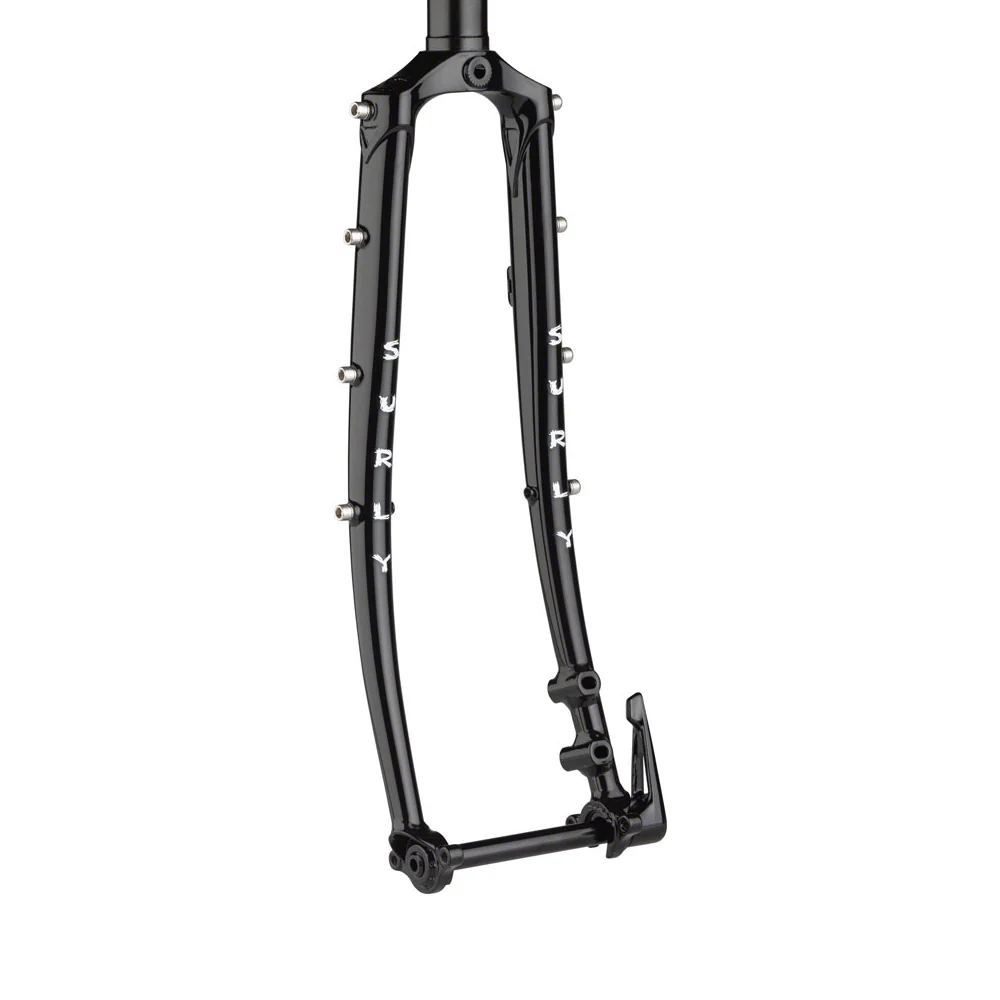

Equipped to make touring the wide world’s paved roads a little more comfortable, the Disc Trucker Thru-Axle Fork has three-pack mounts on each blade to give you space for racks, fenders, and additional cargo solutions. Available in 26˝ and 700c wheel sizes, it offers dynamo routing, a 1-1/8˝ threadless steerer tube, and compatibility with 12mm captured thru-axles and flat-mount disc brakes.

Features |

• 100% Chromoly steel construction, curved blades, powder coated
• Versatile three-pack mounts on the fork blades, plus routing for Dynamo hubs

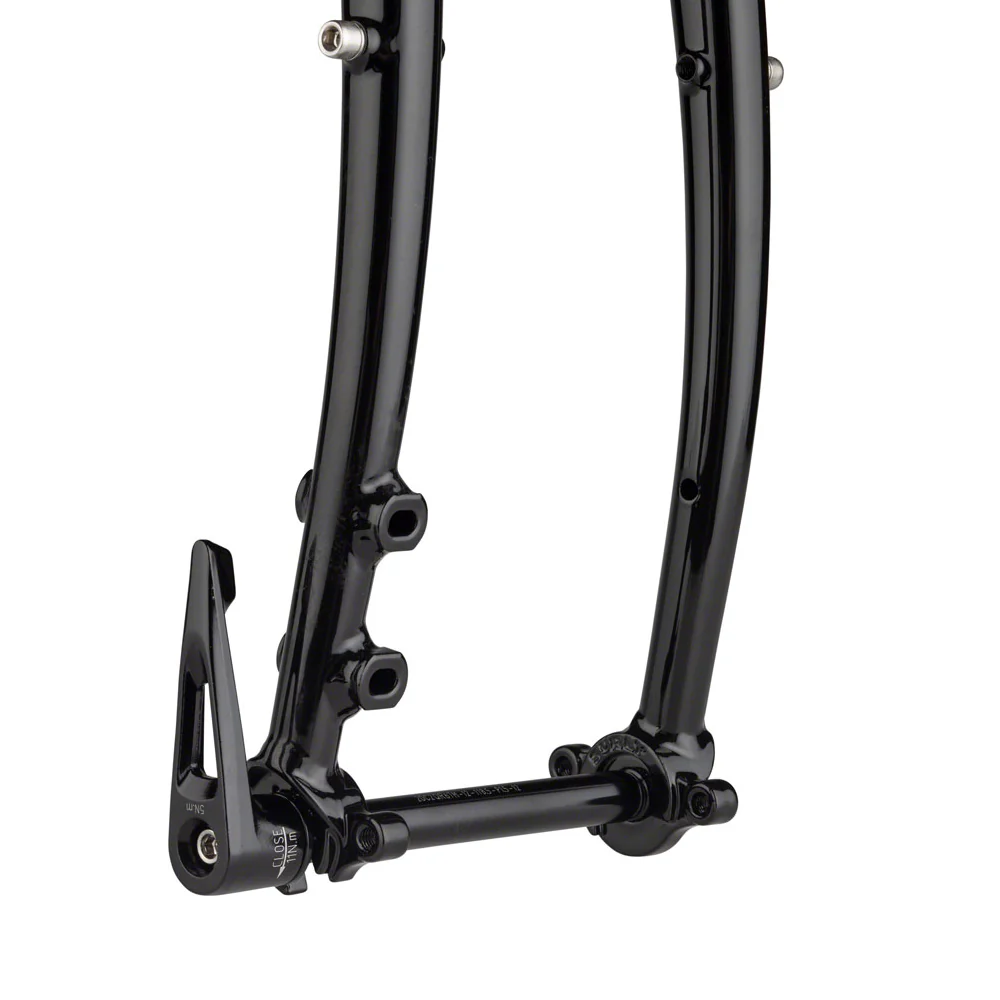

• Completely redesigned fork ends to accommodate 12mm captured thru-axles and flat-mount disc brakes
• Clearance for a 26 x 2.1" tire with or without fenders, or 700c x 47mm with or without fenders
• Axle-to-crown height: 376mm for 26", 390mm for 700c
• Note: The Disc Trucker Thru-Axle Fork is compatible with the second-generation Disc Trucker model, first released in 2020 (frames featuring rear thru-axle dropouts).

Specs |

• Brake Mount (Fork): Flat Mount 160
• Wheel Size: 26"
• Crown Race: 30
• Steerer Type: Straight
• Offset: 45
• Material: Steel
• Steerer Tube Length (mm): 400
• Color: Black
• Maximum Tire Clearance (Fork): 26x2.1
• Front Axle: 12mm Thru x 100mm
• S.H.I.S. Stem Clamp Diameter: 28.6
• Front Hub Spacing (mm): 100
• Axle to Crown Length: 376
• Defined Color: Black
• Max Rotor Size (Fork): 160
